Dosing tanks made from PE, Chemical dosing stations with agitators, cylindrical dosing tanks, sight glass, process equipment





dosing tanks, plastic dosing tank, dosing station, hdpe tanks
contactMore information?

Would you like to receive more information or a price offer from one of our products? Please contact us.



stainless steel tanks, mixing tank, food tanks, stainless steel mixing tanks

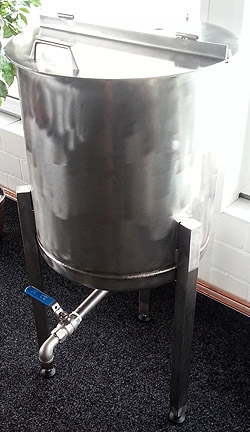

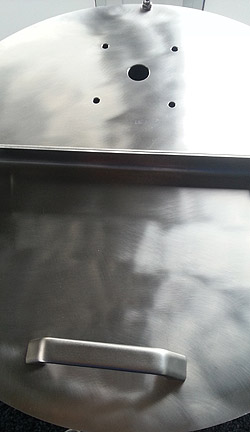

Stainless steel mixing tanks
Our dosing tanks are seamless and made from UV stabilized Polyethylene. Dosing tanks safe for food processing and with a high chemical resistance. The dosing tanks have a seamless design and are made to high quality standards.The dosing tanks are also available with electric agitator.


Cylindrical dosing tanks


cylindrical dosing tanks, chemical dosing station, seamless dosing tank, rotational moulded tanks

These cylindrical plastic dosing tanks are equipped with a screw cap, liter scale, 3/4" BSP inner thread outlet.

Capacity Outer dia. Height Opening dia
35 ltr 320 mm 500 mm DN 70
60 ltr 420 mm 640 mm DN 160
100 ltr 450 mm 810 mm DN 160
200 ltr 550 mm 1030 mm DN 160
300 ltr 655 mm 1110 mm DN 160
500 ltr 770 mm 1230 mm DN 160
750 ltr 970 mm 1170 mm DN 160
1000 ltr 1080 mm 1260 mm DN 160


Dosing tanks XL - high capacity


plastic dosing tank
Capacity Outer dia. Height Opening dia
1100 ltr 1100 mm 1340 mm DN 380
1400 ltr 1100 mm 1660 mm DN 380
1700 ltr 1210 mm 1715 mm DN 380
2000 ltr 1310 mm 1715 mm DN 380
2050 ltr 1210 mm 2020 mm DN 380
2400 ltr 1310 mm 2005 mm DN 380
2500 ltr 1470 mm 1715 mm DN 380
3000 ltr 1470 mm 2020 mm DN 380

Conical dosing tanks in steel rack


rectangular dosing tank standing on feet Rectangular process tanks in frame. The dosing tank has a 90 degree conical tapered bottom with a 2" opening. Complete with vented screw cap.

Available in white or black PE.

The rack is available in steel, galvanised steel or stainless steel.

Capacity Dimensions
30 ltr 290 x 290 x 910 mm
50 ltr 340 x 340 x 1110 mm
115 ltr 495 x 495 x 1125 mm
180 ltr 495 x 495 x 1455 mm
200 ltr 495 x 495 x 1605 mm

dosing tank in steel frame, wheels conical dosing tank in frame


Dosing tank agitators

Click here for an overview of our agitators

Dosing tank with agitator type: DVTX Conical bottom tank: DCMX


dosing tank agitator, dosing tank, mixer, 400V, 230V

dosing tank agitator, dosing tank, mixer, 400V, 230V


Dosing tank with agitator / mixer

Seamless plastic dosing tank with 230V or 400V agitator.

Available in:

Agitator 35 Liter dosing tank
Agitator 60 Liter dosing tank
Agitator 100 Liter dosing tank
Agitator 200 Liter dosing tank
Agitator 300 Liter dosing tank
Agitator 500 Liter dosing tank
Agitator 750 Liter dosing tank
Agitator 1000 Liter dosing tank

Open top dosing tank with agitator
Conical bottom tank


Available in:

Closed top with lid
- 100 liter
- 208 liter
- 320 liter

Open tank
- 190 liter
- 500 liter



Accessories and options

dosing tank trolley, wheeled chassis dosing tank spill tray, spill containment pallet
Tank trolley
Wheeled chassis available in painted steel or stainless steel
Spill tray for dosing tank
Spill containment for hazardous liquids

dosing pump, diaphragm dosing pumps, dosing station dosing tank heating, dosing tank heater, heating jacket
Dosing pumps
Dosing pumps for each application available
Heating for dosing tank
Electrical dosing tank heater 0-90 Cº

316 Stainless steel ball valve, dosing tank PE hopper, feeding hopper
316 Stainless steel ball valve

PE feeding hopper


CIP cleaning system, CIP spray balls
cIP system, Spray balls




Stand agitators / Tripod agitators

Tripod agitators, Stand agitators, Wall mount agitators, mixers


Dosing tank agitators

dosing tanks, plastic mixing tank, dosing tank agitator, chemical process tank


Drum agitators, 200L (55 gallon) drum mixers

200L drum agitator, drum mixer, industrial agitators, drums, 55 gallon drum mixer,


Stainless steel mixing tanks

Stainless steel mixing tanks
